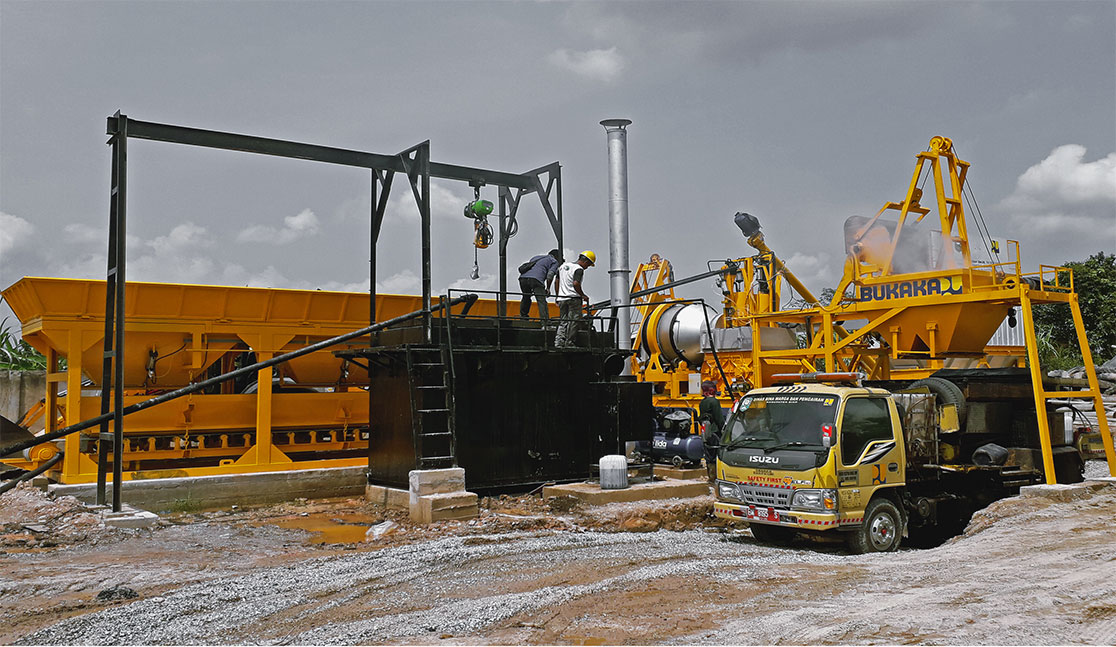

Bukaka Asphalt Mixing Plant type is planned to process a mixture of aggregate and asphalt (hot mix), with a capacity of 800 kg, 1000 kg and 1200 kg each of the mixing process (mixing circle). The composition of the mixture of aggregate set of four compartment Bins and system scales. Each bin is equipped with Pneumatic Gate.
Filling Aggregate served by Cold Bin, Vibrating Feeder, Lower Conveyor and Conveyor Joint to Dryer. Aggregate of Dryer supplied to Vibrating Screen for size distribution.
Weighing Aggregate, Asphalt and Filler, done according to the composition, Aggregate and Filler Mixer flowed into and simultaneously sprayed asphalt. For 30 seconds mixing time, Hot Mix ready poured into dump trucks.
Twin Shaft Mixer unit using Pug mill, rotating counterclockwise through the Spur Gear. Wall Mixer lined with manganese steel liner. Mixer is equipped with a pneumatic operated gate.
AMP unit comes with Dust Collection System Dry or Wet type Dust Collector type (optional).
All the equipment driven by electric motor 380 volt - 3 phase - 50 Hz. Source of electric power supplied from Diesel Generating sets or other electrical source.
